VIU系列
VIU Series is an unit vibration isolator for large payload which is convenient to be integrated into equipments to reduce the influence of vibration isolation from ground and moving load on the isolator.- Product introduction
- Product features

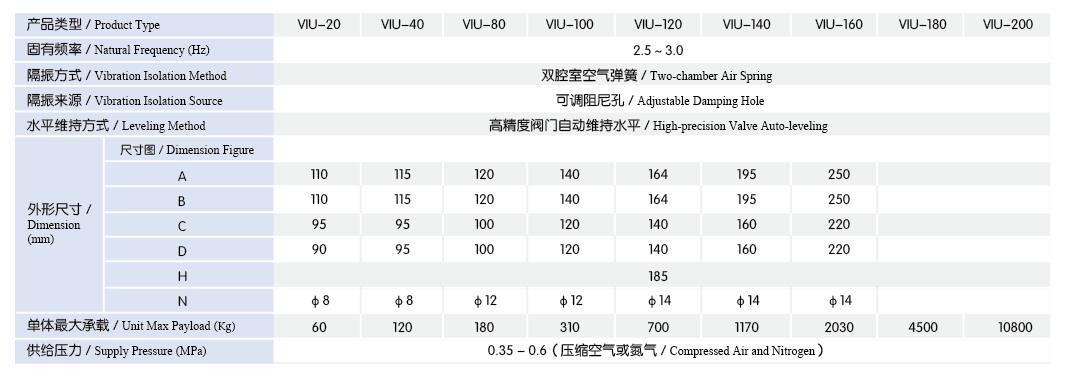

- Technical parameters

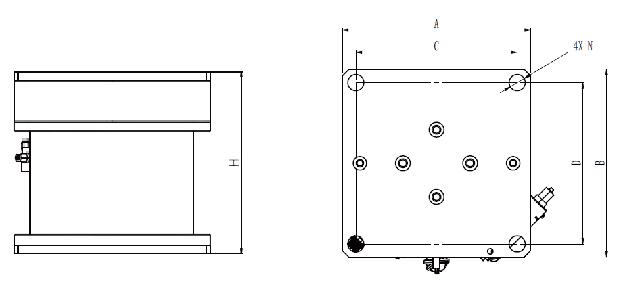

- Reference picture
- VIU Series is an unit vibration isolator for large payload which is convenient to be integrated into equipments to reduce the influence of vibration isolation from ground and moving load on the isolator.
Application
Precision Motion Control System, Precision Measuring Instrument, CMM Measuring System and Measuring Equipment Group;
Testing Equipment of Semiconductor Manufacture, Detecting Equipment of Fission Products, Isotope Detector;
Microscopic Equipment, Laser Equipment, LED Processing Equipment, etc.

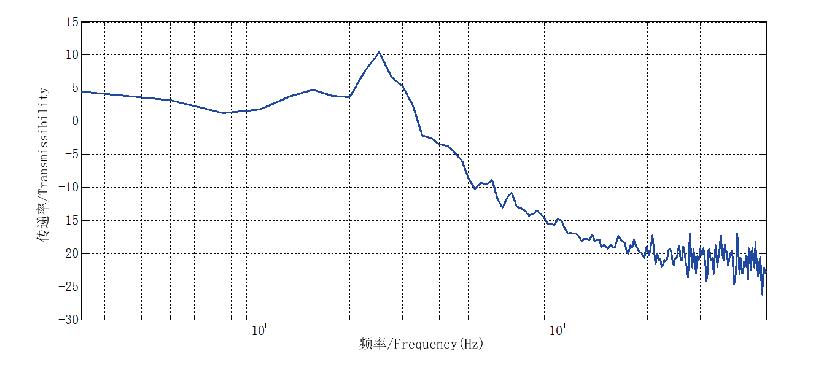

- High Performance Air Spring: Natural Frequency up to 2.5Hz, the Vibration Isolation Efficiency up to 90% and above.
- Auto-leveling Adjustment: The high-precision level valve to realize auto-leveling, makes the isolator recover to level easily.
- Wide Range of Loading Capability: Loading range from hundreds of kgs to tons.
