VIW-B系列
VIW-B Series Precision Vibration Isolation Table- Product introduction
- Product features

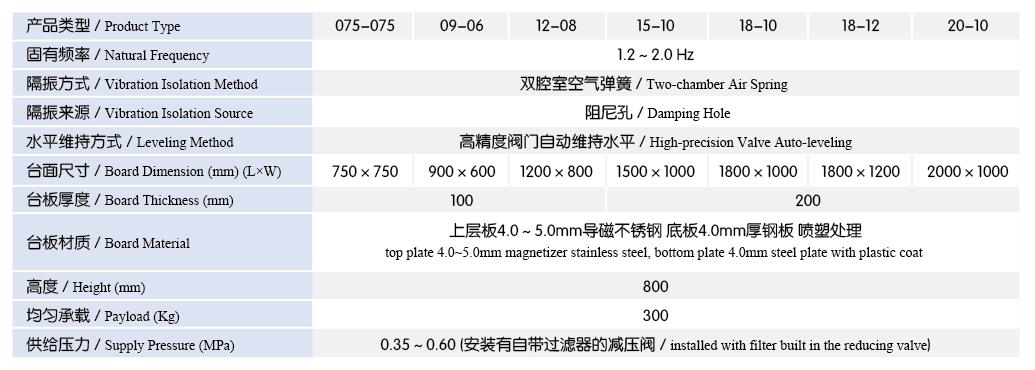

- Technical parameters

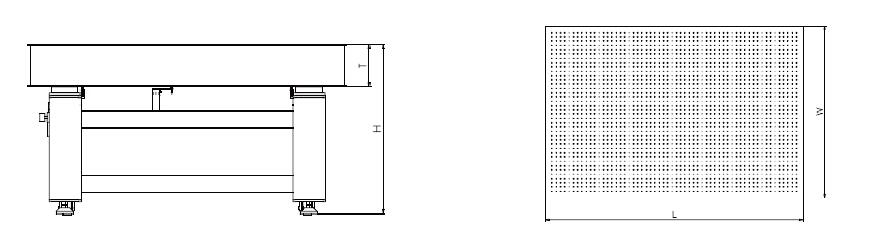

- Reference picture
- VIW-B Series is a versatile vibration isolation table which is able to fulfill the requirement of precision instrument on
vibration isolation.
- High Performance Air Spring Structure：Natural Frequency up to 2.5Hz, the vibration isolation Efficiency up to 90% and above.; Equiped with adjustable damping system to realize rigid adjustment easily.
- Auto-leveling Adjustment：The high-precision level valve to realize auto-leveling, makes the isolator recover to level easily.
- “Bow- shape” Protection：The unique “bow-shape” design protects the table from being damaged when working or moved.
-
Tapped Holes Array Surface：The high stiffness steel plate structure is employed and matt-coated surface is used to avoid the influence from catoptric light on optical experiment; meanwhile the M6 tapped holes make the installation easier.
